Fully Automatic Edge Banding Machine with PUR Hot Melt Adhesive System 18-24m/min Speed for 0.3-3mm Thickness Woodworking

Brand Name : BH

Model Number : 668YJ PUR

Certification : CE

Place of Origin : Qingdao China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000Units/Year

Delivery Time : 7-20days

Packaging Details : 10680*1060*1700mm

Dimension : 10580×960×1600mm

Weight : 4800kg

Speed : 18-24m/min

Width : 50mm

Length : 70mm

Air Pressure : 0.7Mpa

Thickness : 0.3-3mm

Contact Now

668PUR Fully Automatic Edge Banding Machine

The 668PUR is a high-performance, fully automatic edge banding machine integrated with a PUR hot melt adhesive system, designed for precision panel processing in modern furniture manufacturing. It combines a robust welded steel frame, intelligent PLC control, and advanced PUR glue application technology to deliver seamless, durable edge finishes for a wide range of wood-based panels.

Technical Specifications

Specification	Numerical values
Outline Dimension	105809601600mm
Machine Weight	4800kg
Working Voltage	380V/50Hz
Total Power	25kw
Plate Thickness	10-60mm
Conveyor Speed	18-24m/min
Minimum Width	50mm
Minimum Length	70mm
Operating Air Pressure	0.7Mpa
Edge Banding Thickness	0.3-3mm

Core Features

PUR Adhesive System: Professional PUR glue applicator provides strong, moisture-resistant bonding ideal for high-end furniture and moisture-prone environments with uniform glue application and stable temperature control.
Full Process Integration: Integrates pre-milling, PUR gluing, end cutting, rough/fine trimming, corner rounding, scraping, and buffing in one continuous workflow.
Intelligent Control: Stable PLC system with touchscreen HMI enables real-time parameter adjustment, fault diagnosis, and one-click recall of processing recipes.
High-Precision Components: Servo-driven mechanisms, precision guide rails, and wear-resistant alloy trimming knives ensure positioning accuracy and consistent results.
Dust Extraction System: Built-in dust collection ports at each processing stage maintain clean workshop conditions and extend component lifespan.

Key Functions

Pre-Milling: Trims panel edges to smooth, uniform surface to eliminate cutting imperfections and ensure optimal adhesion.
PUR Gluing: Applies hot melt PUR adhesive evenly to both panel edge and edge tape, creating long-lasting, waterproof bond.
End Cutting: Servo-controlled end cutters trim edge tape to match panel length precisely.
Trimming & Rounding: Rough/fine trimming units remove excess edge material while corner rounding unit creates smooth, safe edges.

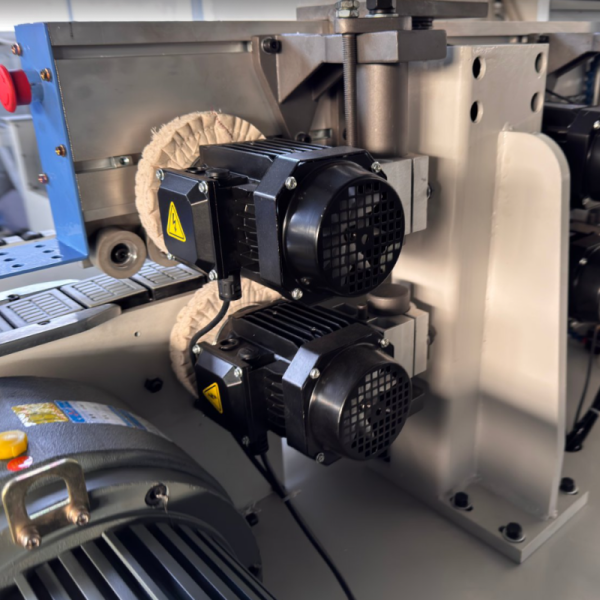

Scraping & Buffing: Removes residual adhesive and polishes edges to glossy, professional finish.
Dust & Chip Removal: Integrated hoses capture wood dust and debris during operation, protecting both machine and operators.

Application Scope

High-end Furniture Manufacturing: Kitchen cabinets, wardrobes, office furniture, and custom cabinetry where durable, waterproof edges are required.
Interior Decoration: Wall panels, door frames, and decorative partitions for residential and commercial spaces.
Specialized Woodworking: Projects exposed to high humidity (bathroom furniture, outdoor cabinetry) due to superior moisture resistance of PUR adhesive.
Mass Production Facilities: Streamlines large-scale panel processing while maintaining consistent quality.

Competitive Advantages

Superior Bonding Performance: PUR adhesive offers stronger adhesion and better moisture resistance than traditional EVA glue, extending product lifespan and reducing delamination risks.
High Efficiency & Consistency: Automated workflow minimizes manual intervention, boosting production capacity by 30-40% compared to semi-automatic machines while ensuring uniform edge quality.
Versatility: Compatible with various edge materials (PVC, ABS, solid wood veneer) and panel sizes, adapting to diverse production needs.
Low Maintenance & Longevity: High-quality industrial components and modular design reduce downtime and maintenance costs, supporting 24/7 operation.
User-Friendly Operation: Intuitive HMI and pre-programmed recipes allow quick setup, reducing operator training time and changeover costs.

Logistics & Support

Packaging: Securely packed in seaworthy wooden crates with shock-absorbing foam to protect components during transit.
Shipping Options: Sea freight (cost-effective for international orders) and door-to-door delivery including customs clearance and installation.
After-Sales Service: 12-month warranty, remote technical support, and on-site installation/training available to ensure smooth operation and minimal downtime.
